旋轉掛梁橋式起重機

本起重機帶有可旋轉掛梁，適用于鋼廠、船廠、港口、堆場和倉儲等室內或露天的固定跨間，裝卸?及搬運鋼板、型鋼、盤卷等物料。具有一定的防搖擺功能。掛梁下可以攜帶電磁吸盤、夾鉗等專用吊?具?。

注：

1、進入司機室的走臺方式為：端入、側入、頂入；

2、起重量包含掛梁及專用吊具自重；

3、掛梁最大旋轉角度為±180°;

4?、圖示極限位置尺寸S1?、S2為掛梁旋轉90°后，掛梁中心線距軌道中心線數據；

5、以下所有數據為室內使用時；

6、參數表中起重機總功率為行車本體功率，不含專用吊具功率

?

Low?level slewing overhead crane with carrier-beam

The crane?is equipped with a rotatable hanging?beam,which?is?suitable?for?loading,unloading?and?handling?steel?plates,section?steels,coils and other?materials?in?indoor or outdor fixed?spans?of?steel?plants,shipyards,ports,storage?yards?and?warehouses.It?has?certain anti swing?function.Special?iting appliances?such?as?electromagnetic?suction?cups?and?clamps?can?be?caried?under??the hanging?beam.

Notes:

1.The ??e modes?of entering?cab:from the?end;from?the?side;from?the?top;

2.The lifting weight includes the deadweight of?hanging beam and special lifting?appliance;?3.The max.rotating angle ofcarrier-beam is±180°;

4.Theicsofthelinitingpoition?SlndS2in Thefigreane the duabetwenthe certerlneofcamier-Beamandthe centerline ofthemlafierthe carier-beanrots90;?5.All below-mentioned data is?forbeing used?indoors;

6.The total power of?the crane in the parameter list is the powerof?The travelling crane,but?excludes the?Power?of?specillifing?appliances

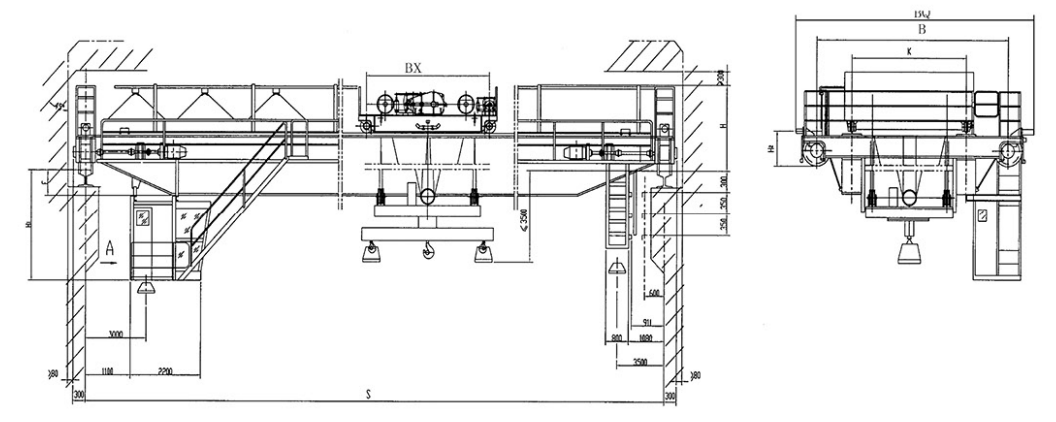

簡圖：sketch

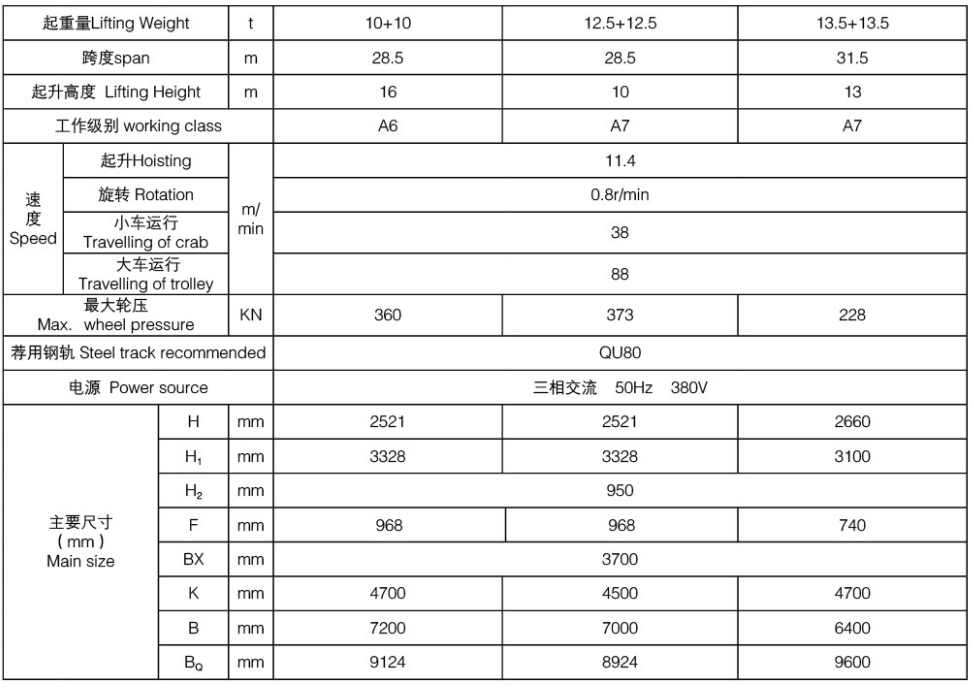

技術參數
